FEULING PARTS Race Series® Camchest Kit with Short Travel Lifters
In StockSKU: 7273ST
Vehicle Fitment
$2,069.95
As low as $517.49/mo with or . (Pay in 4 interest-free payments)
FEULING PARTS Race Series® Camchest Kit with Short Travel Lifters Upgrade your 114" or 117"> water-cooled engine with the FEULING PARTS Race Series® Camchest Kit featuring the 487 Reaper® Chain Drive camshaft and Race Series® Short Travel Hydraulic Roller Lifters . This bolt-in kit is engineered to improve breathing, maintain bottom-end strength, and deliver hard pull at higher RPM. What’s Included 487 Reaper® Chain Drive Camshaft Cam installation kit (cam bearing, cam/crank hardware, gasket/O-ring kit) Race Series® Short Travel Lifters (standard OD) One Piece Pushrod Race Series® Oil Pump High Flow Camplate (billet 7075 aluminum) ARP rocker studs and nuts, plus camplate/oil pump fasteners Performance Highlights RPM range: 2,250–6,100 38° overlap for strong high-RPM efficiency Maintains bottom-end power and pulls hard above 2,950 rpm vs. stock Improves response to increased bore and/or compression Oil system support: +10–30 PSI , cooler temps, reduced wet sumping Feuling test results: ~50% reduction in sump oil level Specifications (Key) Type: Chain Drive Camchest Kit Application: Water Cooled Grind: 487 Series (Model: Reaper) Intake: 237° duration, 0.478" lift @ TDC Exhaust: 241.5° duration, 0.146" lift @ TDC Made in the USA. FEULING does not recommend tuning beyond stock emissions standards. Weight: 11.13 lbs | Dimensions: 16.42" x 11.06" x 5.98"
487 Reaper® Chain Drive Camshaft, Cam Installation Kit, Race Series® Sort Travel Lifters, One Piece Pushrod, Race Series® Oil Pump, High Flow Camplate, and ARP Rocker Studs and Nuts, Camplate/Oil Pump Fasteners are included in this kit
487 Reaper Camshaft.
Bolt-in
Chain Drive
Camshaft for 114" and 117" engine
Responds very well to increased bore and or compression
Maintains bottom end power and pulls hard above 2,950 rpm when compared to stock
RPM range 2,250 - 6,100
38° overlap
Cam specs measured in the engine on the lifter @ 0.050 using a 1.61 rocker arm ratio.
Cam Installation Kit
Includes cam bearing, cam/crank hardware and gasket/O-ring kit
Race Series® Short Travel Lifters
Short travel hydraulic roller lifters, standard OD (0.8420-0.8423)
Designed with 0.115 of total travel

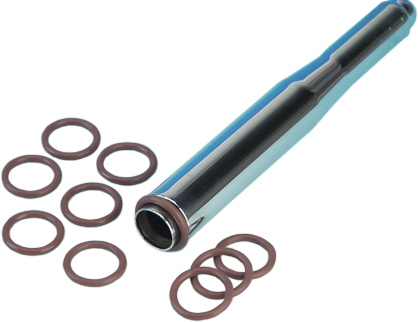

One Piece Pushrod
HP+ 0.165 wall, +0.040 longer
Heavy duty 7/16" diameter tube with 0.165 wall thickness, precision concentricity, heat treated with a black oxide finish
Race Series® Oil Pump
Increase oil pressure, scavenge volume and engine oil flow
30% more pressure gear volume over stock
53% more scavenge gear volume over stock
42% more scavenge volume with port sizing, matched passages and holes to the engine case
46% more oil volume to the crankshaft and connecting rod bearing
15°- 25° cooler engine temperatures
15°- 30° cooler oil temperatures
10-30 more PSI of oil pressure
Reduces wet sumping, blow by and oily air cleaners
Magnets in oil pump to help protect gears and pressure relief valve
Rear wheel power gains of 2 horsepower and 2 ft. lb. of torque are achieved.
FEULING test results show a 50% reduction of engine sump oil level.
High Flow Camplate
Bolts into stock location
Billet 7075 aluminum
Made in the USA
Feuling does not recommend tuning beyond stock emissions standards.
