S&S CYCLE 100" Power Package Engine Performance Kit
Only 1 Left!SKU: 3300662
Vehicle Fitment
$3,324.82$3,396.95
Save 2%
As low as $831.21/mo with or . (Pay in 4 interest-free payments)
S&S CYCLE 100" Power Package Engine Performance Kit (585CE) Upgrade your Twin Cam 88 with the S&S CYCLE 100" Power Package Engine Performance Kit —a complete, bolt-in solution that increases displacement from 88 ci to 100 ci for stronger street performance. Built in the USA , this kit combines S&S high-performance components including 4.000" Big-Bore cylinders, precision valvetrain parts, and a proven 585 Easy Start ® cam setup designed for modern responsiveness. What’s Included 2x S&S 4.000" Big-Bore cylinders with low-friction ductile cast iron liner 2x piston kits (4.000" pistons), 0.927" piston pins, and ring packs for each bore S&S 585 Easy Start ® cams , TC3 cam support plate S&S Quickee pushrods with adjustable chrome tubes TC3 oil pump and precision hydraulic tappets Performance Highlights 10.5:1 compression ratio Low friction, consistent oiling for durability Easy bolt-in design : no crankcase splitting, balancing, or machining required Works with stock heads Cam Specs (585 Easy Start ® ) Intake: Open 20° / Close 45°; Duration @ 0.053": 245°; Lift: 0.585" Exhaust: Open 60° / Close 20°; Duration @ 0.053": 260°; Lift: 0.585" Compatibility Notes Not for ’06 Dyna Not compatible with S&S 79 cc Super Stock ® heads Not recommended for Tri-Glide or other three wheel models due to lugging characteristics ’99–’04 Twin Cams require an additional valve spring kit (sold separately) Specifications: 4.000" bore, Chain drive, Silver finish, Street riding style. Displacement: 100" . Weight: 40.7 lbs . Dimensions: 27" x 20.5" x 12" .
Made in the USA

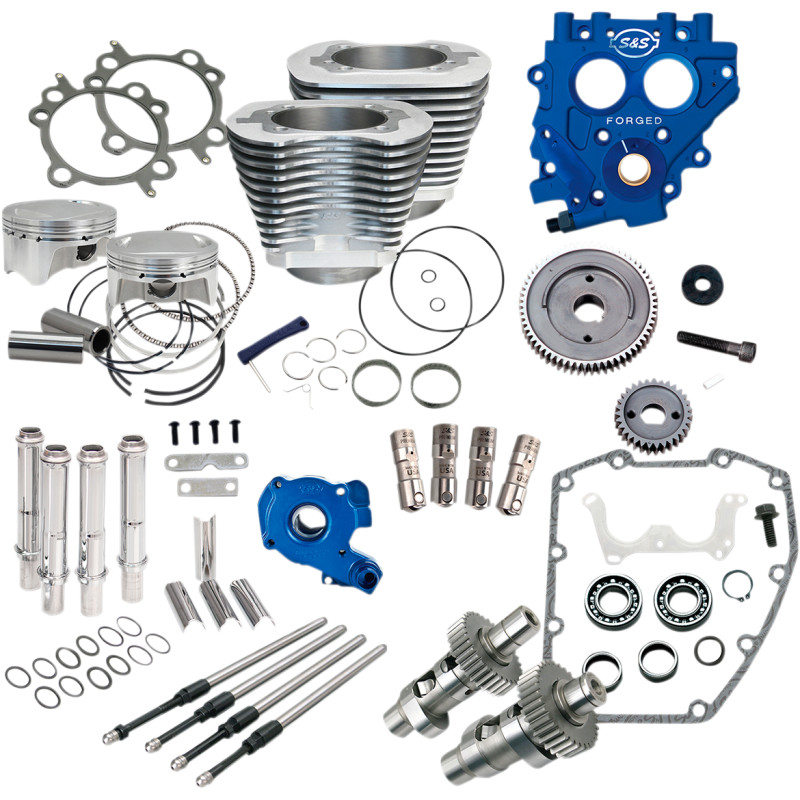

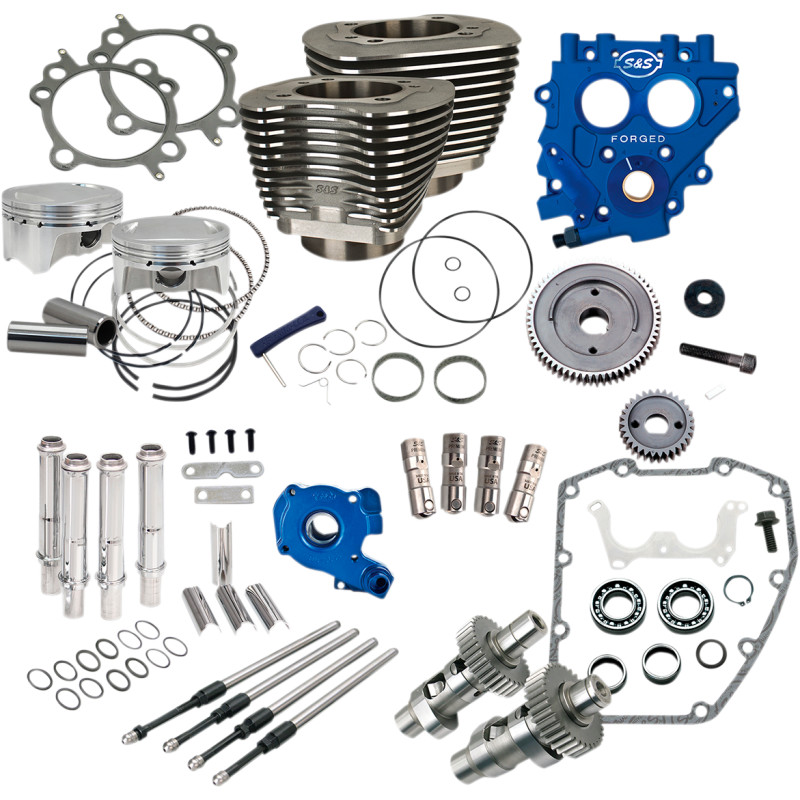

S&S 4.000" Big-Bore Cylinders, Piston Kits, S&S 585 Easy Start® Cams, S&S Quickee Pushrods, TC3 Cam Support Plate, TC3 Oil Pump, and Precision Hydraulic Tappets are included in this kit
S&S Cylinder
2x S&S 4.000" bore cylinders
Low friction ductile cast iron liner
Bolt in
No maching, balancing, or splitting the crankcase
Can be used with stock heads
Increase displacement from 88 ci to 100 ci
Piston Kit
2x 4.000" pistons for front and rear
2x 0.927" piston pins
4x Piston pin clips with installation tool
2x Ring packs which includes the top, second, oil rail and expander rings
S&S 585 Easy Start® Cam Specifications
S&S Quickee Pushrods
Adjustable with chrome tubes
TC3 Cam Support Plate and TC3 Oil Pump
Machined from aluminum forgings
Ensures consistent oil pressure and engine longevity
Precision Hydraulic Tappets
Close tolerances for low leak down rates
Reduced valve train noise from start to shut down
Not for '06 Dyna.
Not compatible with S&S 79 cc Super Stock® heads.
Not recommended for Tri-Glide or other three wheel models due to lugging nature of these bikes.
'99-'04 Twin Cams will require the additional purchase of valve spring kit (sold separately).
