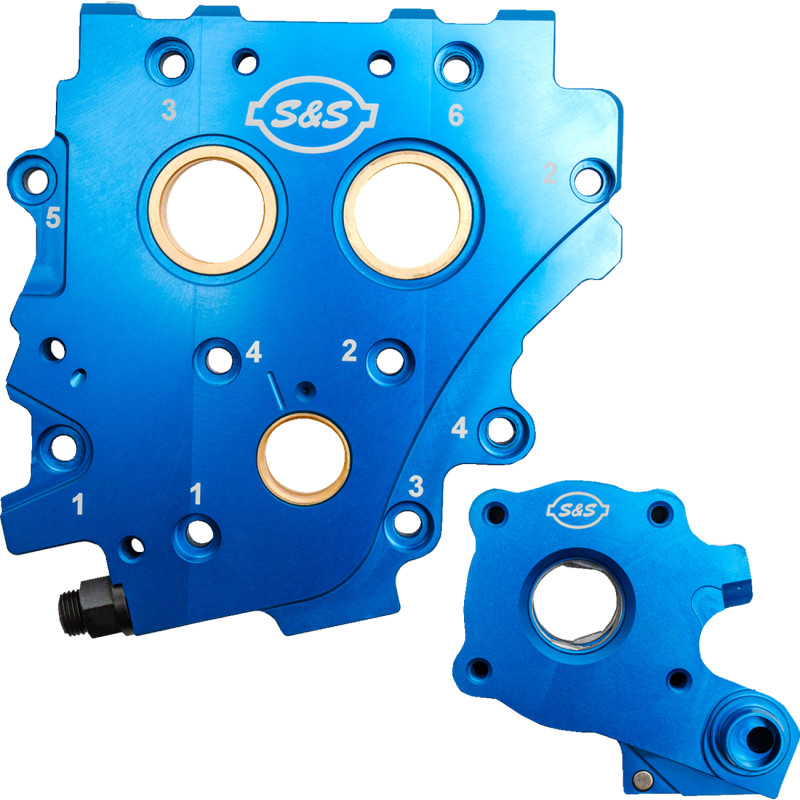

Upgraded Oil Pump & Cam Support Plate Kit by S&S Cycle S&S CYCLE TC3 Oil Pump and Cam Support Plate Kit is engineered to deliver stronger, more reliable scavenging and durable cam-chest support for street performance builds. Key Features Precision CNC machined forged aluminum construction for long-term strength and dimensional stability Freedom for internal porosity to support efficient oil flow Separate scavenge sections for the flywheel cavity and cam chest—each scavenges more efficiently with no interference Gerotors designed to tolerate more pinion shaft runout without damage Cam chest pick-up includes a magnetic trap to help protect scavenge rotors from metal debris Both scavenge rotors are protected—reducing the leading cause of stock oil pump failure Removable passage plugs for easier service Bronze pinion shaft bushing on all models; bronze cam bushings (07-15 style) can be replaced Adjustable oil pressure regulator lets you fine-tune without removing the plate 99-06 cam support plate supports late style hydraulic cam chain tensioners (spring-loaded tensioners may not control the valve train at high RPM with higher lift cams or performance springs) Made in the U.S.A. Specifications Type: Cam Support / Oil Pump Model: TC3 Material: Aluminum Riding Style: Street Color/Finish: Blue (Base Color: Blue) Units: Kit Weight: 4.96 lbs Dimensions: 15.24" x 10.39" x 5.77"
Precision CNC machined forged aluminum
Increased structural strength
Dimensional stability
Freedom for internal porosity
Separate scavenge sections for flywheel cavity and cam chest scavenge each area more efficiently with no interference
Gerotors are designed to tolerate more pinion shaft runout without damage
Cam chest pic up features a magnetic trap to protect scavenge rotors from metal debris
Both scavenge rotors are protected from debris, the most common cause of stock oil pump failure
Passage plugs are removable for service
Bronze pinion shaft bushing in all models and bronze cam bushings in 07-15 style can be replaced
Adjustable oil pressure regulator - adjust without removing plate from engine
99-06 cam support plate is designed to use late style hydraulic cam chain tensioners because stock spring-loaded tensioners used in 99-06 models don't adequately control the valve train at high rpm, especially with higher lift cams or performance valve springs
