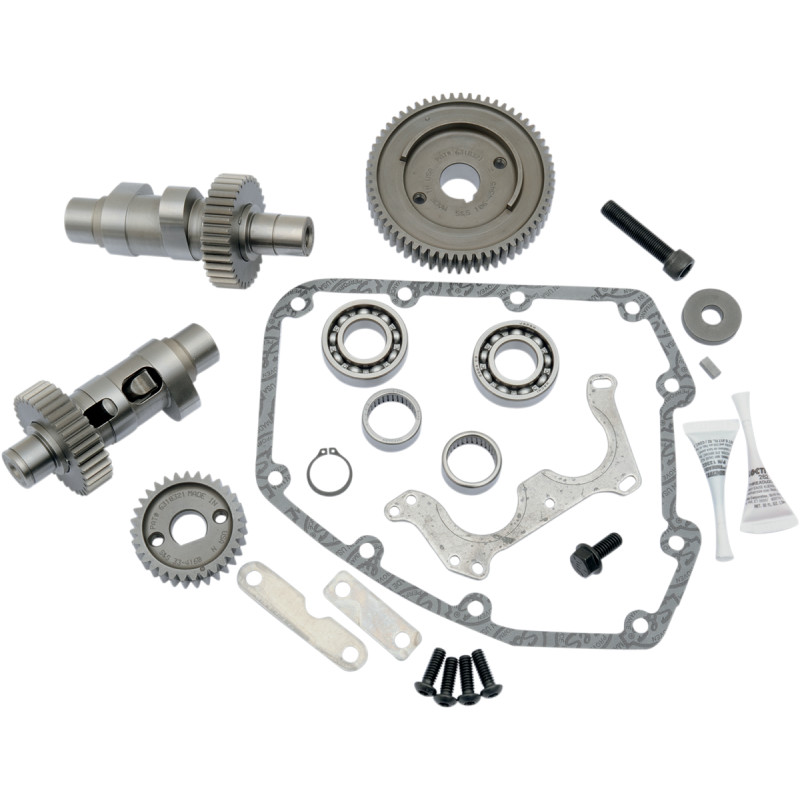

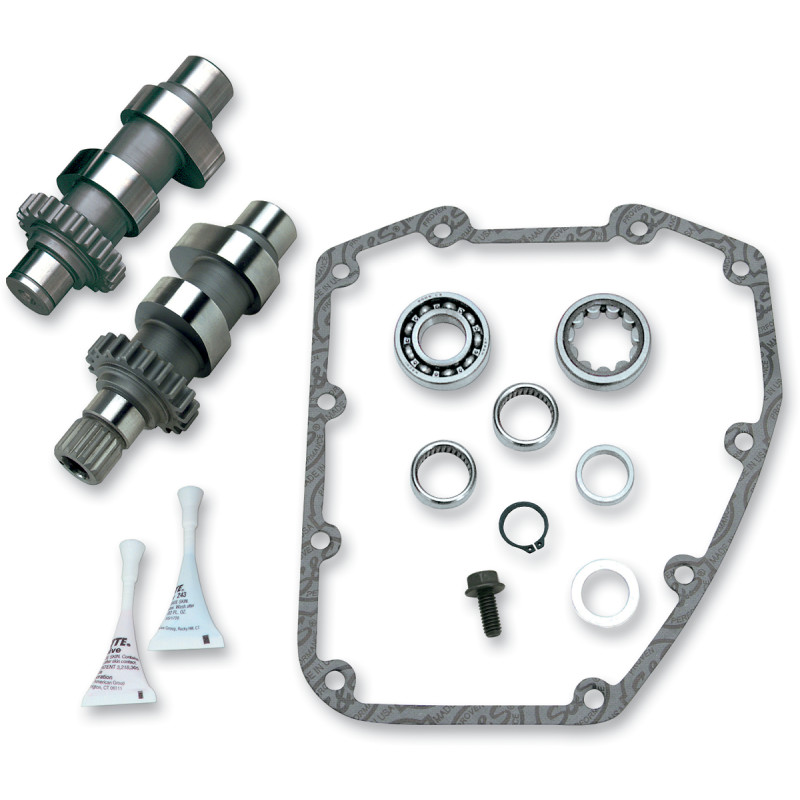

S&S CYCLE 583 Easy Start Camshaft Kit (Gear Drive) The S&S CYCLE 583 Easy Start Camshaft Kit is built for smooth, confidence-inspiring starts and strong real-world performance. Designed as a gear drive kit for Big Twin applications, it features an Easy Start compression release that temporarily reduces crank compression during starting, then retracts as rpm increases so the engine runs normally— with full compression and no performance loss . Key Features Easy Start : reduces crank compression to help starting, then centrifugally retracts for normal operation Optimized for Softail & Dyna (great overall camshaft for Big Twins) Strong low-end torque and horsepower Strongest 1500–5000 rpm in Softail and Dyna models Bolt-in kit for streamlined installation Made in the USA Includes camshafts, gearcover gasket, bearings, retaining ring, o-ring, thread lock, and instructions Fitment Notes Installer must check coil bind , valve-to-valve clearance , and valve-to-piston clearance . Not for models with OEM compression releases. Not recommended for compression ratios 10.0:1 or greater . Specifications Model/Grind : Easy Start, 583 Series Intake Lift : 0.583" (0.113" at TDC), Duration : 204°, Open/Close : 5° / 18° Intake Lobe Centerline : 96.5° Exhaust Lift : 0.583" (0.206" at TDC), Duration : 262°, Open/Close : 58° / 24° Exhaust Lobe Centerline : 107° Type : Gear Weight: 4.81 lbs | Dimensions: 11.57" x 9.25" x 4.84"
Allows for easy start by initially reducing crank compression, but once the engine starts and rpm increases, the compression release lobe is centrifugally retracted and the engine runs normally, with full compression, and without any loss in performance
Optimiized for use as a great overall camshaft for Softail and Dyna, but can be used in any Big Twin
Provides strong low-end torque and horsepower
Strongest from 1500 rpm to 5000 rpm in Softail and Dyna models
Bolt-in
Includes camshafts, gearcover gasket, bearings, retaining ring, o-ring, threat lock and instructions
Made in the USA
Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.
Not for models with OEM compression releases.
Not recommended for compression ratios of 10.0:1 or greater.
