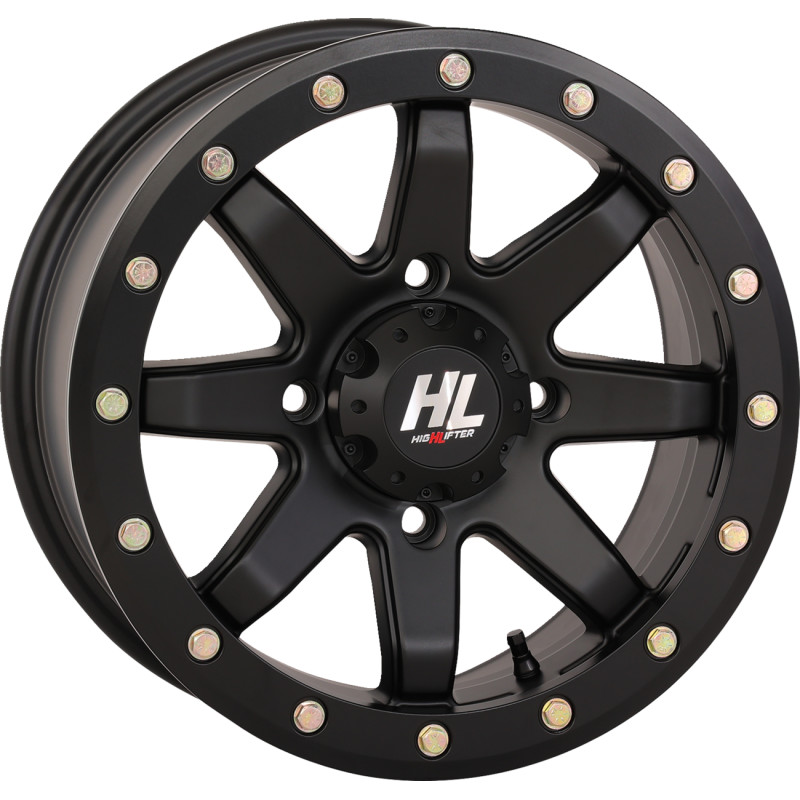

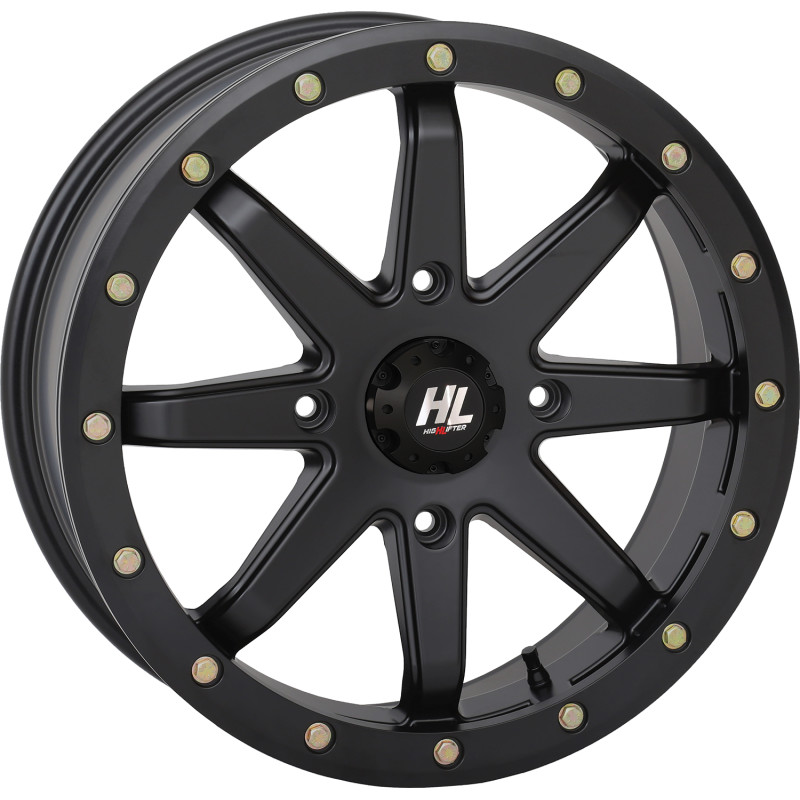

HIGH LIFTER HL9 Beadlock Wheel (Matte Black) – 14x7 Upgrade your ATV/UTV with the HIGH LIFTER HL9 Beadlock Wheel , built for confident traction and trail-ready durability. This front/rear beadlock design features a classic 8-spoke look and a strong matte black finish. Key Features Factory-installed valve stem (TR-412) 10 mm billet beadlock ring for secure tire retention 5/16" grade 8 hardware Classic 8-spoke design Bolt-in center cap Lifetime structural warranty Includes 4 “starter” bolts (silver) to be replaced with standard bolts (gold) Installation & Torque Notes Impact wrenches are not recommended during beadlock ring installation. When mounting tires, torque all bolts to 15 ft/lb using a 1/2" socket . Specifications Model: HL9 Beadlock Material: Aluminum | Finish: Matte Black Size: 14x7 | Offset: 5+2 (+30 mm) Bolt Pattern: 4/156 Rim Width: 7" | Rim Diameter: 14" Load Capacity: 1200 lb Valve Stem: Rubber | Installed length: 0.875" Valve Stem diameter: 0.453" | Core torque: 2–5 lb/in Beadlock bolt torque spec: 15 lb/ft Qty: 1 wheel. Weight: 18.45 lbs .
Factory-installed valve stem
10 mm billet beadlock ring
5/16" grade 8 hardware
Classic 8-spoke design
Bolt-in center cap
Lifetime structural warranty
The High Lifter Beadlock wheels include 4 “starter” bolts (silver) which need to be replaced once the standard bolts (gold) are attached.
Impact wrenches are not recommended at any point during installation of the beadlock ring due to the possibility of over- or under-tightening the bolts.
When mounting tires, using a 1/2" socket, torque all bolts to 15 ft/lb.
