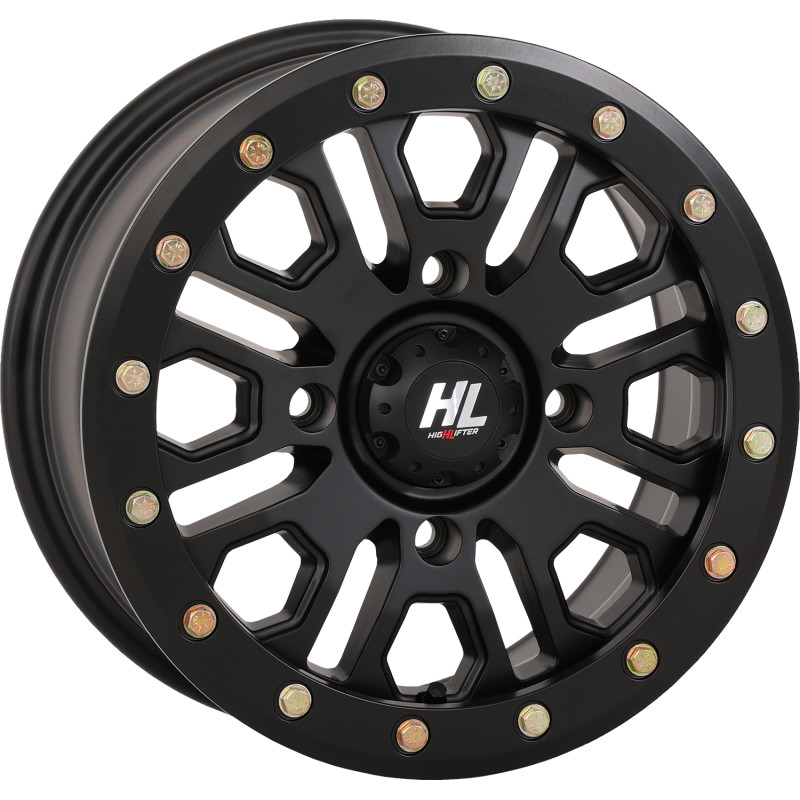

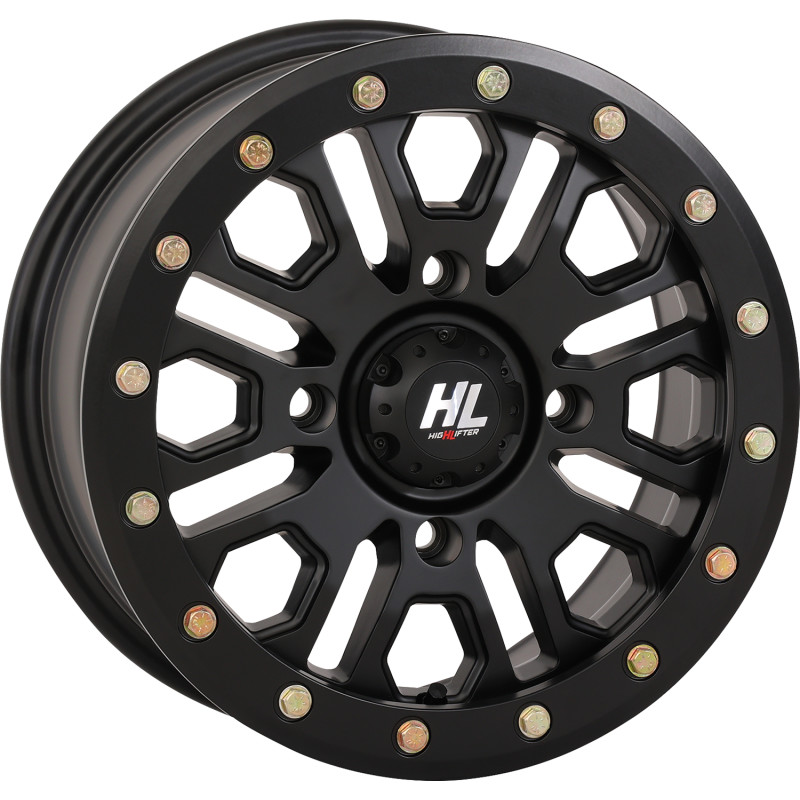

HIGH LIFTER HL23 Beadlock Wheel (Matte Black) – 14x7 Upgrade your ATV/UTV with the HIGH LIFTER HL23 Beadlock Wheel , built for confident control on demanding terrain. This front/rear beadlock features a durable aluminum construction, a sleek matte black finish, and a tough meshed split-spoke design. Key Features Unique meshed, split-spoke design for standout style Factory-installed valve stem for convenient setup 8 mm billet beadlock ring helps secure tire beads under load 5/16" grade 8 hardware for strong clamping Bolt-in center cap for a clean, finished look Lifetime structural warranty for long-term confidence Includes 4 starter bolts (silver) to replace after attaching standard bolts (gold) Installation & Torque Notes Impact wrenches are not recommended during beadlock ring installation to avoid over/under-tightening. When mounting tires, use a 1/2" socket and torque all bolts to 15 ft/lb . Specifications Model: HL23 Beadlock Position: Front/Rear Size: 14x7 (Rim Diameter: 14") Bolt Pattern: 4/137 Offset: 5+2 (+38 mm) Finish/Color: Matte Black Material: Aluminum Load Capacity: 1200 lb Valve Stem Diameter: 0.453" | Core Torque: 2–5 lb/in Beadlock Style: High Lifter Universal Units: Each Weight: 18.55 lbs
Unique meshed, split-spoke design
Factory-installed valve stem
8 mm billet beadlock ring
5/16" grade 8 hardware
Bolt-in center cap
Lifetime structural warranty
The High Lifter Beadlock wheels include 4 “starter” bolts (silver) which need to be replaced once the standard bolts (gold) are attached.
Impact wrenches are not recommended at any point during installation of the beadlock ring due to the possibility of over- or under-tightening the bolts.
When mounting tires, using a 1/2" socket, torque all bolts to 15 ft/lb.
