LEGEND SUSPENSION REVO ATS - UTV Suspension System
In StockSKU: 1310-2375
Vehicle Fitment
$4,172.68
As low as $1,043.17/mo with or . (Pay in 4 interest-free payments)
LEGEND SUSPENSION REVO ATS - UTV Suspension System Revo ATS is Legend Suspension’s adjustable, air-assisted coil suspension system engineered for hard-working UTVs. With independently adjustable (front-to-rear) air springs, it helps maintain factory-like ride height, improve leveling, and reduce bottoming when you’re hauling gear, accessories, or attachments. Built for durability and precision tuning, the system features integrated helper air springs for a broad range of adjustability to support better ground clearance, stability, and comfort—whether unloaded or at near-GVWR load. Key Features Patented independently adjustable front-to-rear air-assisted coil design Aramid fiber-impregnated air springs for high puncture resistance and long service life Heavy-duty 46 mm billet aluminum dampers with 16 mm hard chrome shafts Tool-free rebound tuning via easy-access knob for repeatable performance Type III hard coat anodized finish for lasting protection Spherical bearings reduce bind for smooth travel through the range Adjust air pressure using one-touch wireless remote and/or Bluetooth app USA-made kit includes shocks, compressor assembly, remote, harness, airline, and air fittings Compatibility & Fit Notes Compatible with stock A-arms . Not intended for use with or as a lift kit . Specifications Type: Coilover Air (Front/Rear kit) Extended Length: 19.0" Front / 23.0" Rear Adjustment: Adjustable Air Spring Material: Aluminum Finish: Black, Type III hard coat anodized Weight: 81.1 lbs
Legend’s patented design features an independently adjustable (front-to-rear) air-assisted coil suspension for hard-working utility UTV's
Industry-exclusive, integrated helper air springs, offer a wide range of adjustability to improve ground clearance, chassis leveling, and reduce bottoming under heavy loads
Designed to optimize ride quality and maintain the factory ride height of UTV's regardless of cargo, accessory, or attachment weights
Custom coil spring rates improve ride quality when UTV is in an unloaded state
Engineered to allow UTV's to be loaded to the OE manufacturer's GVWR without jeopardizing stability, safety, or comfort
Aramid fiber-impregnated air springs provide high puncture resistance and unmatched durability
Features heavy-duty 46 mm billet aluminum dampers with 16 mm hard chrome shafts for exceptional strength
Easy access knob allows tool-free rebound adjustment for precise, fast, and repeatable adjustments for fine-tuning ride quality and performance across the entire damping profile
Type III hard coat anodized for a long-lasting, durable finish
Spherical bearings in mounting points eliminate suspension bind throughout the range of suspension travel
Air pressure adjustments are easily made via a one-touch, wireless remote control and/or a Bluetooth mobile app

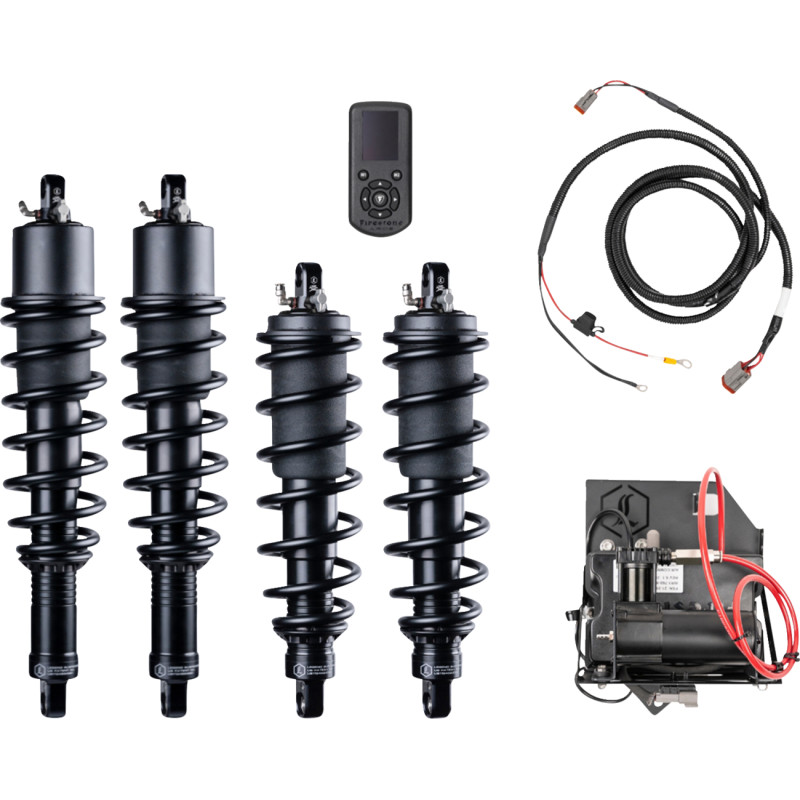

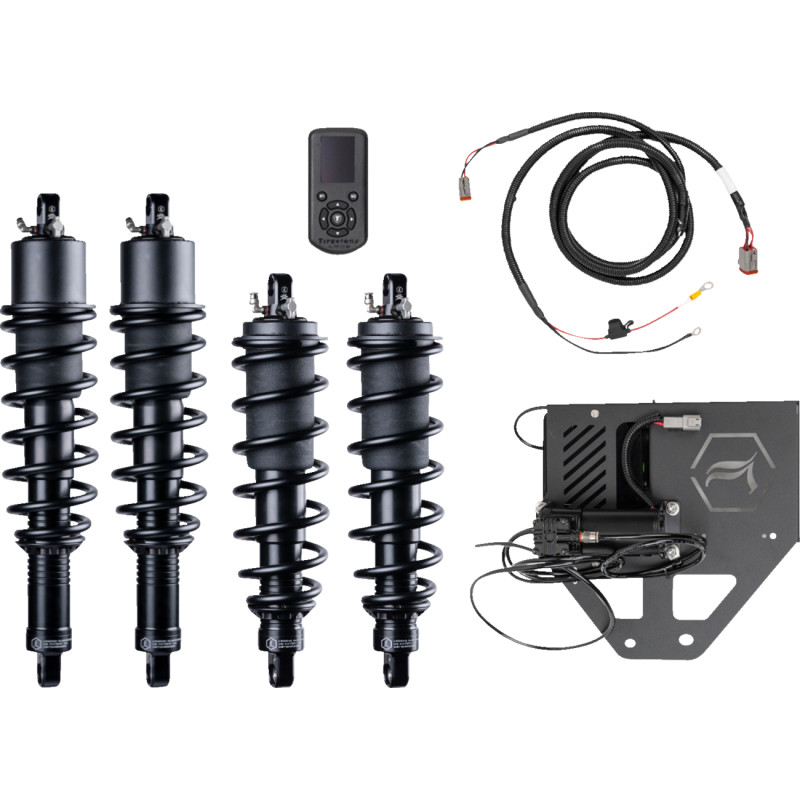

Kit includes four shock assemblies, pre-mounted compressor assembly, remote control, wire harness, airline, and air fittings for easy installation
Made in the USA
Compatible with stock A-arms, not to be used with or as a lift kit.
