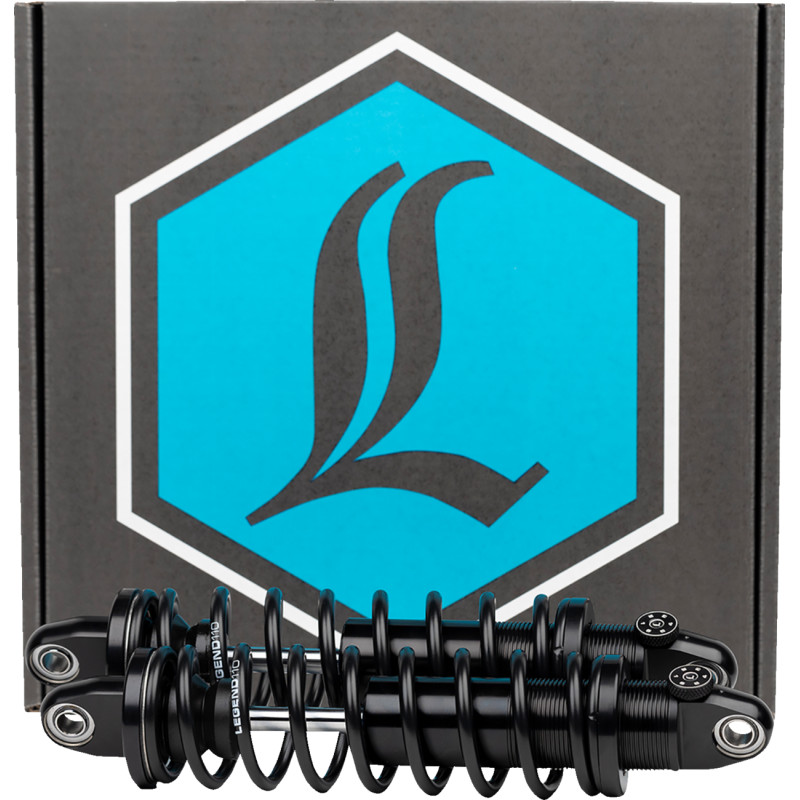

LEGEND SUSPENSION Legend REVO-A Coil Suspension For Dyna Models
In StockSKU: 13100946
Vehicle Fitment
$1,007.18
As low as $251.80/mo with or . (Pay in 4 interest-free payments)
LEGEND SUSPENSION Legend REVO-A Coil Suspension for Dyna (12" Standard) – Black Upgrade your ride with LEGEND SUSPENSION REVO-A adjustable coil suspension engineered for Dyna models . Built in Sturgis, SD USA, this street-focused rear suspension delivers confident handling, all-day comfort, and rebound control you can dial in by hand—no tools required. Key Features Adjustable rebound damping via six external knob adjustments for precise fine-tuning. Touring-specific coil spring rates for superior ride comfort, improved performance, and increased resistance to bottoming. Hand adjustment —quick changes without tools. Multiple lengths : 12", 13", 14"; available in standard or heavy-duty applications. Easy installation & alignment with spherical bearings at both top and bottom mounting points. Coil options in Black, Gold, or Clear Type III hard-coat anodize . Optimized rebound performance for light to heavy riders and casual to aggressive riding styles. Specifications (Pair) Model: Revo-A Duty: Standard Adjustment Type: Adjustable Rebound Damping Mounting Position: Rear Color/Finish: Anodized Black Extended Length: 12.00" Reservoir Location: Internal Damping Method: Deflective Disc Type: Coilover Twin-Tube Units: Pair Material: Aluminum Weight: 9.42 lbs

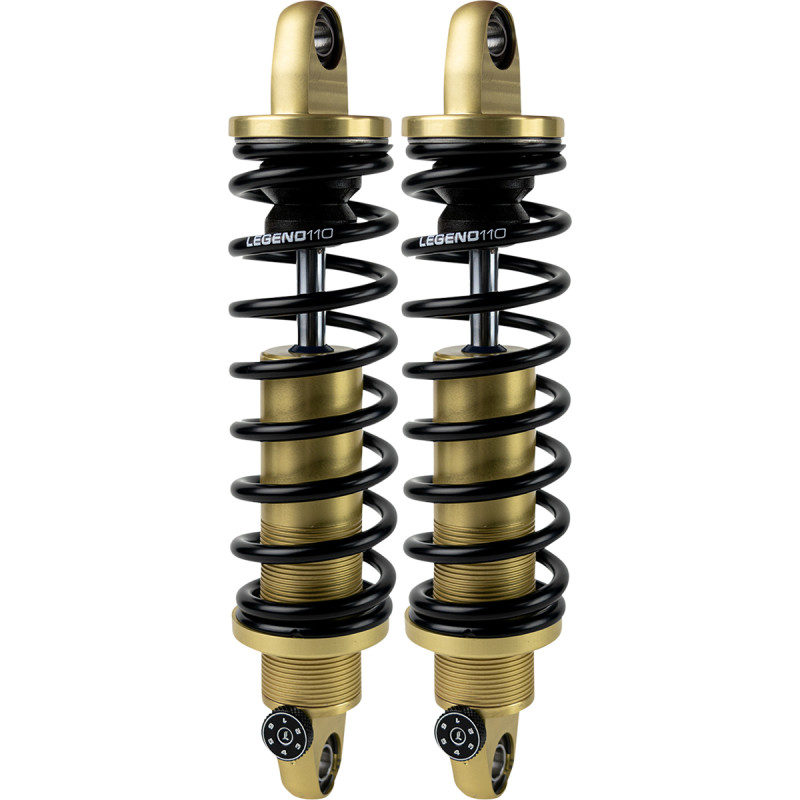

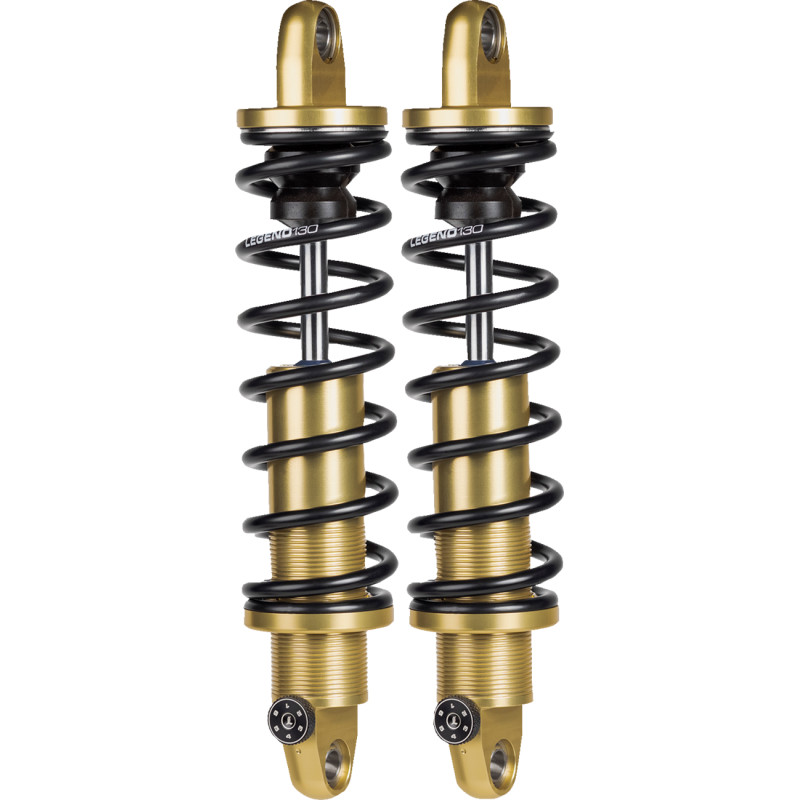

Available in Black, Gold and Clear Type III hard coat anodize
Legend's touring specific coil spring rates provide superior ride comfort, improved performance, and increased resistance to bottoming for all day comfort
Adjusts by hand, no tools needed
Available in 12", 13", and 14", standard or heavy-duty applications
Easy installation and alignment, provided by spherical bearings on both top and bottom mounting points
All the benefits of the REVO shocks above plus six external knob adjustments allow fine-tuning of rebound
Provides optimum rebound performance for any given rider weight, personal ride quality preference, or personal riding style
Light to heavy riders can fine-tune ride preference
Aggressive to casual riding styles can tune to desired quality or personal preference
