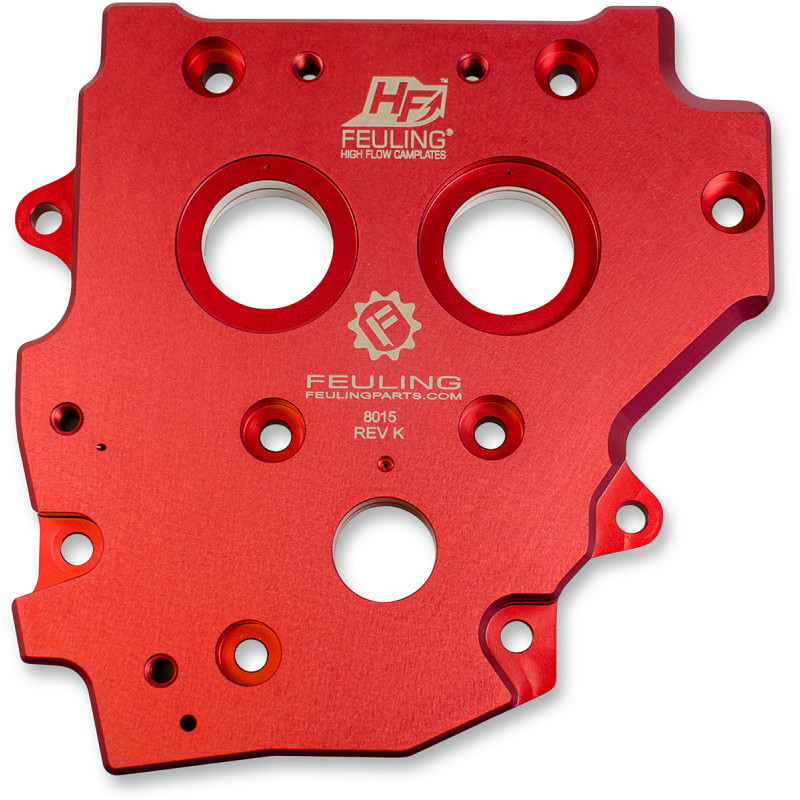

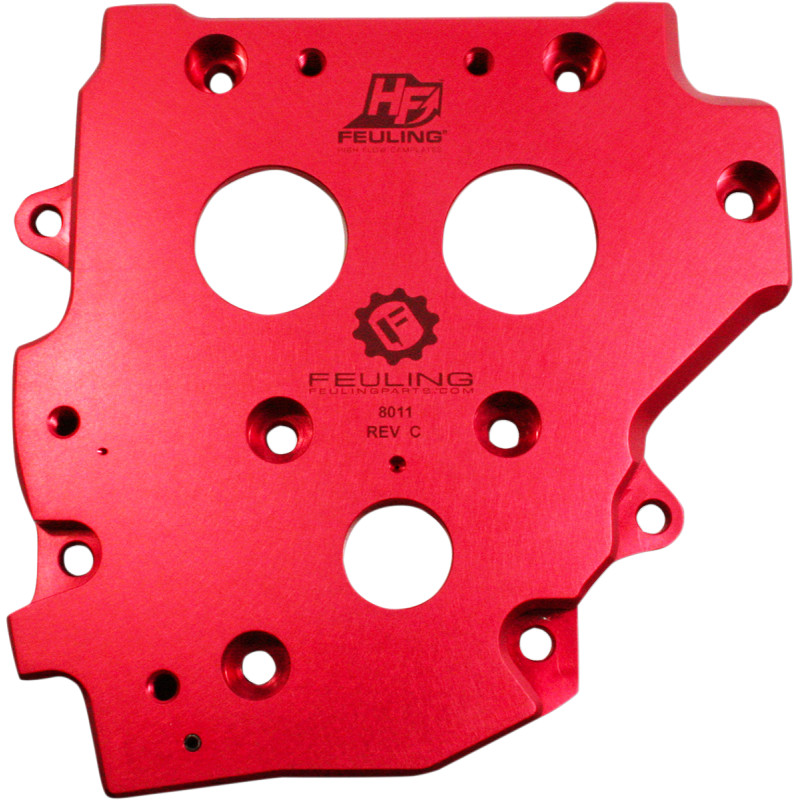

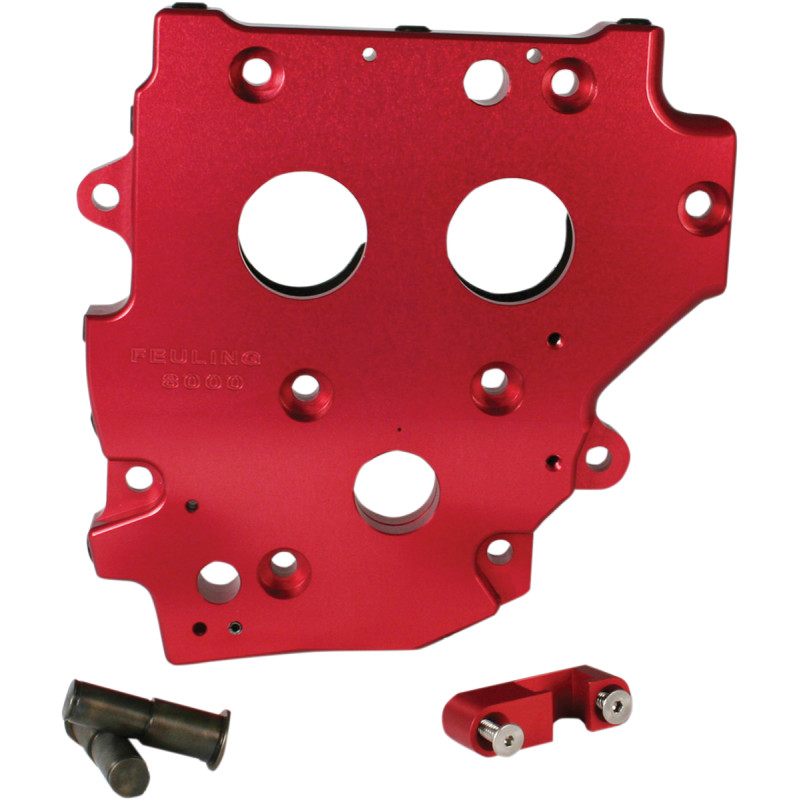

FEULING PARTS High Flow Camplate (Gear Drive) for Twin Cam Increase lubrication and cooling with the FEULING PARTS High Flow Camplate, engineered to match oil flow paths between the camplate and engine case for stronger, more consistent oil delivery. This camplate is designed for Gear Drive Twin Cam applications (except '06 Dyna) and is intended for use only with FEULING® oil pumps . Key Benefits Camplate matches oil portholes to engine case port holes to increase engine oil flow throughout the engine Pressure tested; pressure relief valve is seated, sealed, and set to pop off at 55–60 psi Enlarged oil pump reservoirs and critical oil passages help boost oil flow and volume Helps reduce temperatures: 25°–35° cooler engine and 20°–30° cooler oil When paired with the Feuling® Race Series oil pump rear , gains up to 3 hp and 4 ft/lbs torque Added cam journal oil groove for cold start protection and improved lubrication Oil pressure feed holes to front and back of cam journals to help prevent excessive thrusting wear Construction & Fit Material: 7075 Billet Aluminum Finish: Red Type: High Flow Cam Plate (Gear Drive) Included: Bearing and retainer plate hardware Made in: USA Riding Style: Street Sold as: Each Weight: 2.26 lbs | Dimensions: 8.7" x 8.46" x 2.04"
Camplate matches the oil portholes throughout the camplate to the port holes in the engine case increasing engine oil flow throughout the engine
Camplates are pressure tested and pressure relief valve is seated, sealed and set to pop off at 55-60 psi
Increase engine oil flow and volume by enlarging the oil pump reservoirs and critical oil passages
25°-35° cooler engine temperatures and 20°-30° cooler oil temperatures
When matched with the Feuling® Race Series oil pump rear wheel power gains of 3 horsepower and 4ft/lbs of torque can be achieved
Added cam journal oil groove for cold start up protection and increased cam journal lubrication
Oil pressure feed holes to front and back of cam journals to prevent excessive thrusting wear
